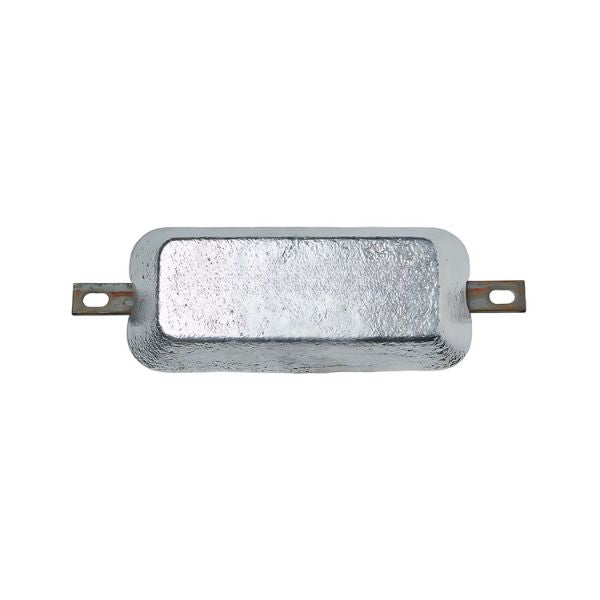

Zinc anode Type 55, hull, 12lb, B110550
Article: B110550

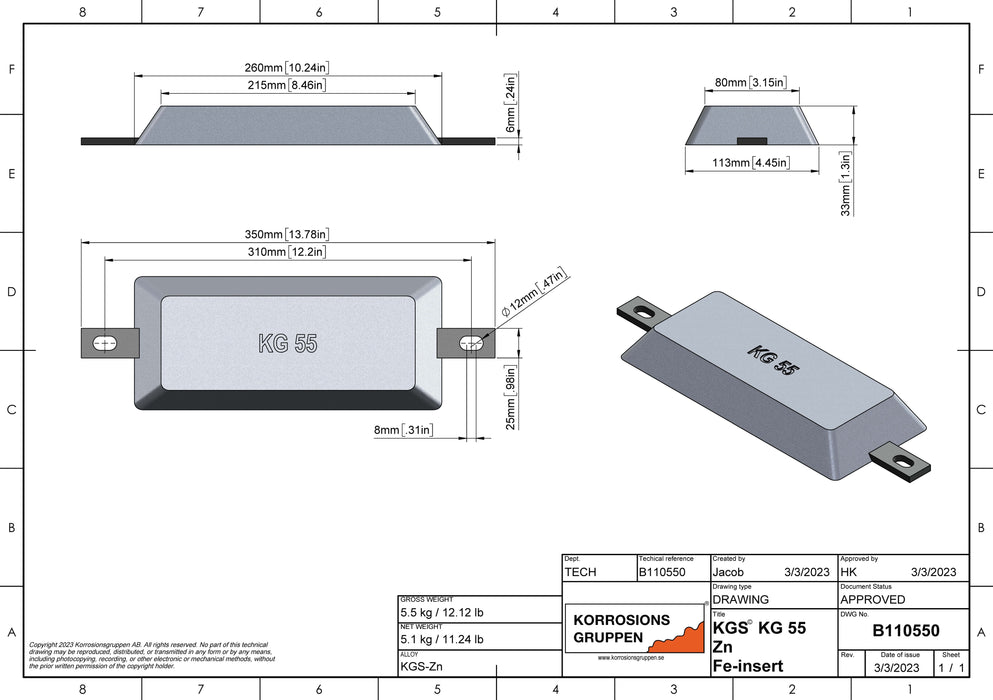

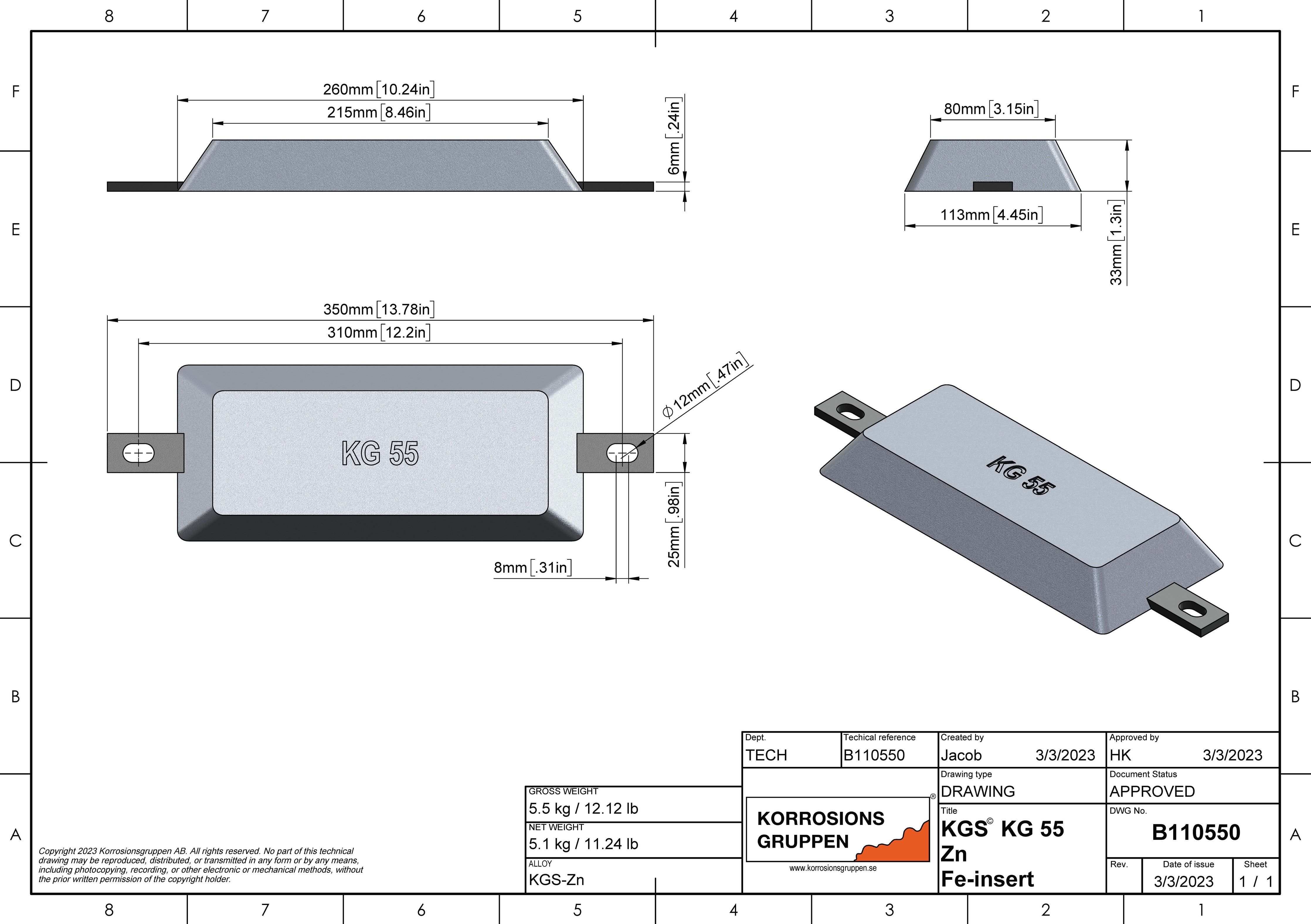

- Total length: 350mm/13.78in
- Width: 113mm/4.45in
- Height: 33mm/1.3in
- Hole distance: 310mm/12,20in
- Net weight: 5,1kg/11,24lb
- Gross weight: 5,5kg/12,13lb
- Reinforcement: FE
Save 29%
Original price
743,00 kr
Original price
743,00 kr
-
Original price
743,00 kr
Original price
743,00 kr
Current price
529,00 kr
529,00 kr
-
529,00 kr
Current price
529,00 kr
Availability:
In stock
Bulk discount
| PCS | Discount | Price |
|---|---|---|
| 5 | 5 % | 502,55 kr /st |
| 10 | 10 % | 476,10 kr /st |
| 20 | 15 % | 449,65 kr /st |
| 50 | 20 % | 423,20 kr /st |
Product description
Product specification
Type 55 zinc anode
Material: Zinc
Alloy: MIL-DTL-18001L-ZN
Article: B110550
- Net weight: 5.1KG/11lb
- Gross weight: 5,5KG/12lb
- Reinforcement: Steel
- Hole distance: 310mm/12.2inches
- Bolt holes: 12x20mm/0.47x0.78inches
- Total length:350mm/13.8inches
- Length:260mm/10.2inches
- Width:113mm/4.45inches
- Height:33mm/1.33inches
Application areas:
- Ship hull
- Port
- Slip
- Cable
- Pipeline
- Dykdalb
- Pump
- Pontoons
- Bridges
- Pillar
With over 30 years of experience, you as a customer can always feel safe with our products. We manufacture everything according to the highest international standards and industry guidelines. Each batch with anodes undergoes rigorous testing and quality assurance, as it has been for over 30 years ...
Not sure what type of material to use?Ask us, we can!
Technical data
- Capacity: 780 AH/kg
- Consumption: 11.2 kg/A year
- Specific weight: 7.13 kg/dm³
- Potential: -1 030 mv Rel AG/AGCL in seawater
Typical chemical composition, MIL-DTL-18001L-ZN
| Material | % of weight |
| Aluminum (al) | min 0.10, max 0.5 |
| Cadmium (CD) | min 0.025, max 0.07 |
| Steel (FE) | Maximum 0.005 |
| Copper (CU) | Maximum 0.005 |
| Lead (pb) | Maximum 0.006 |
| Other (each) | Maximum 0.10 |
| Zinc (zn) | Remaining |
Information
Extend the lifespan of your marine investments, check the product description for more information.
